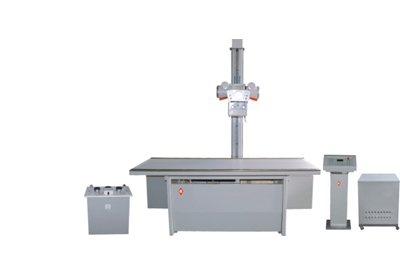

Horsehead 200 mA Xray Machine

Uses: General Photography, filter radiography

Main features: ● ● single tube sheets can be stored eight kinds of photographic parameters, and its condition parameter selection and storage ● strong sense of vision and operations Operations Console, tube voltage, tube current, photography time adopt LCD display. ● With the power supply voltage (V) to automatically adjust, photography (kV) stepless adjustable, automatic fault alarm. ● X-ray tube assembly using tangential pipe sleeve. ● high voltage primary uses the zero-power thyristor control circuit ● Photography bed can be used for vertical and horizontal movement. Column can swing 4 × 90o ● Photography bed, column, vibrating filter limiter device integration, without having to install earth orbit. ● loaded with chains, exposure time, rotating anode start, stop, filament preheat temperature protection tube assembly.

The main technical parameters

Power Requirements

Voltage Single phase 220V/380V ± 10%

Frequency 50Hz ± 1Hz

Capacity of not less than 20kVA

Resistance 220V: 0.25Ω 380V: 0.75Ω

Photography

Voltage 50-100kV * 50-120 kV

Current small coke: 50mA, 100mA large coke: 50mA, 100mA, 150mA, 200mA

 Time 0.04 - 6.3s

High-voltage transformer assembly

Capacity 15kVA (instantaneous) / 15kVA

The maximum DC output voltage 100kV * 120kV

Maximum output current is 200mA DC

X-ray tube model XD51-20, 40/100 * XD51-20, 40/125

Focus Small focus: 1 × 1mm, big focus: 2 × 2mm

Photography bed (DG1)

Bed (L × W × H) 2000mm × 710mm × 700mm

Bed vertical range of movement: 620mm Lateral: 200mm

Bucky

Longitudinal travel: ≥ 500mm

Gate density: N28

Convergence distance: 100cm

Gate ratio: r8

X-ray source assembly

Pillar

Longitudinal movement (along photographic bed) 1800mm or 1600mm

Move up and down (along the column) of ground clearance 630mm ~ 1750mm

Rotating around the center of the cross arm ± 180o

Three-dimensional rotation 4 × 90o

Around the axis of rotation of the X-ray tube sets-10o ~ 60o ~ 120o

The maximum size of the clamping cartridge tray photographic 365mm × 432mm (14 "× 17")

Package Size 244cm × 113cm × 111cm

Gross Weight 600kg 700kg
